See more and catch more with the new HDS Pro, giving you the clearest and most-detailed views with new, higher-resolution ActiveTarget 2 Live Sonar and new, ultra high-definition Active Imaging HD. Our clearest sonar ever, Active Imaging HD delivers high-definition views of Lowrance CHIRP sonar, SideScan and DownScan Imaging. FishReveal has also been expanded to be available on SideScan and DownScan, making fish easier to identify to the sides and beneath the boat. (*Requires S3100 Module) ActiveTarget 2 Live Sonar provides higher-resolution views of fish movement and structure. It also supports plug-and-play installation of two ActiveTarget systems, making it possible to watch multiple views simultaneously, and to widen Front and Scout modes for better bait tracking.


Specifications

Display
Backlight Color    Pure White LED
Display Resolution    1280 x 800
Screen Brightness    >1200 Nits
Viewing Angles    80° top/bottom, 80° left/right

Electrical
Power Consumption max    2.9A @ 13VDC with Full Backlight, Sonar on
Power Consumption min    2.0A @ 13VDC with Full Backlight, Sonar on
Power Consumption typical    2.0A @ 13VDC with Full Backlight, Sonar on
Recommended Fuse Rating    3A
Supply Voltage    12 v DC (10.8-17 V DC)

Physical
Dimensions    W x H x D 11.06in (294.6 mm) x 7.6in (193.15 mm) x 3.3 in (82.5 mm)
Weight    3.66lb (1.66kg)
Compass Safe    1.6 ft (50 cm)
Mounting Type    Panel mount or bracket mount

Environment
Humidity    60°C, 95% relative humidity (RH) for 18 hours
Operating Temperature Range    5°F to 131°F (-15°C to 55°C )
Shock Vibration    100,000 cycles of 20 G
Storage Temperature Range    4°F to 140°F (-20°C to 60°C )
Waterproof rating    IPX7 with card door closed

Interface
Touchscreen    Full Multi-touch touchscreen
Keypad    8-way directional keypad
Buttons    Zoom /-, Exit, Enter, Menu, Waypoint, Power / Light

Connectivity
Bluetooth    5.2 with support for Bluetooth® classic
Ethernet Ports    2 x 100 Mbit, 6 max MFD's on a network
Connectivity Wi Fi    Internal 802.11b/g/n and Compatible with WiFi-1 Module
NMEA 2000    1x Micro-C
SD Card Storage    2 micro SD cards up to 32GB FAT32, Larger if formatted NTFS
NMEA 0183    via Power cable

Video
Output    None
Input    Composite video RCA - single channel via optional adaptor

GPS
Correction    DGPS, WAAS
GPS Receiver Channels    16
Position Accuracy    20m RMS
Time to First Fix    30s
Update rate    10 Hz

MFD
Sonar Compatibility    Integrated: Dual channel CHIRP Broadband, ActiveTarget (2), ActiveImaging (HD) DownScan, ActiveImaging (HD) SideScan. Compatible with: S3100, StructureScan, StructureScan3D, S5100, SonarHub
Radar    All HALO Radars
Weather    SiriusXM via WM-4 (USA only)
AIS    AIS Chart and Radar overlay. Target vessel details.
Autopilot    NAC-1, NAC-2, NAC3, Outboard Pilot, MotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
Digital Switching    CZone, Naviop, DDS
GPS    10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
Internal Storage    8.0 GB Internal
Multimedia    SonicHub, SonicHub 2, FusionLink products, any NMEA 2000 compliant Marine Audio products
Sonar Output Power    1kW
Waypoints, Routes, Tracks    3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail
HTML5    Support for third part HTML apps
Autopilot Maneuvers Turn Patterns    Course, Heading, Waypoint, Power Steer, U-Turn, C-Turn, Spiral, Zigzag, Square, Lazy-S
Steering Modes    Course, Heading, Waypoint, Power Steer

In The Box:

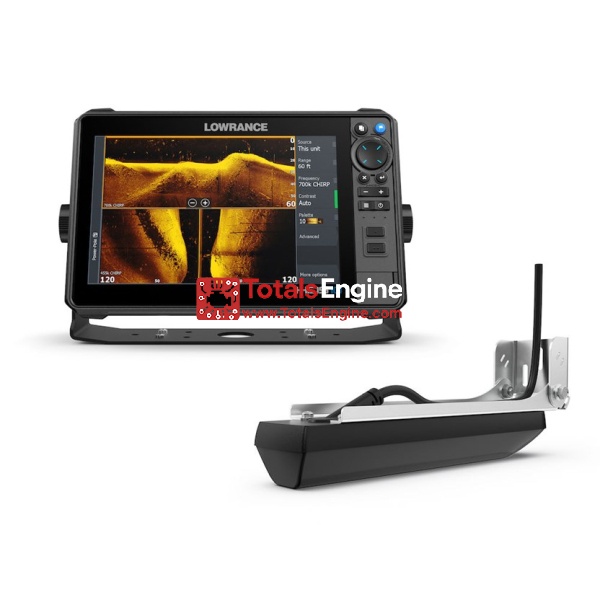

HDS-10 PRO
Lowrance Power/0183 Cable
Gimbal Bracket and Knobs
DISCOVER - NORTH AMERICA
ActiveImaging HD 3-in-1 Transducer
