The Big Tiller

The optional center-mounted Big Tiller offers optimal control for the 35hp and 40hp Jet. A longer tiller grip incorporates a convenient power trim switch, the shift lever is close at hand, and an optional digital troll control adjusts engine speed as low as 700 rpm in 10-rpm increments.

FourStroke Jet Outboards

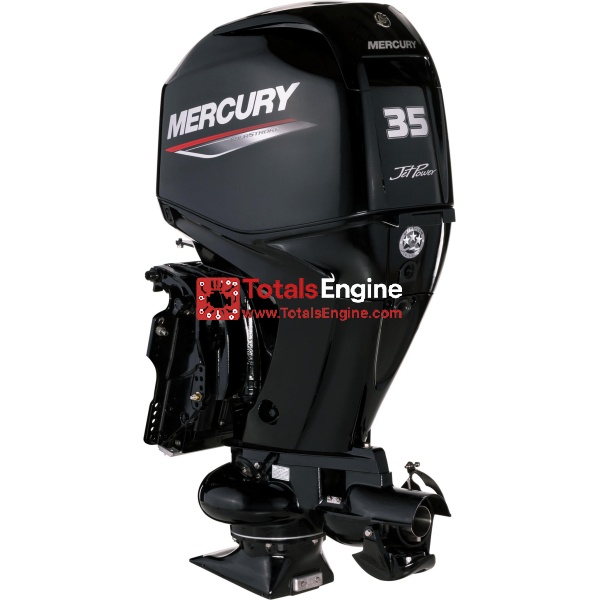

Mercury Jet Outboards are designed with the power and the weight to cover any shallow-water jet boat application. Our FourStroke jet outboards are electronic fuel injected, with a range from 25 to 80 horsepower.

SPECIFICATIONS - 35

HP / kW
35 / 26

Engine type
Inline 4

Displacement (CID/CC)
60.8 / 995

Full throttle RPM
5000-6000

Fuel induction system
2 valves per cylinder, single overhead cam (SOHC)

Alternator amp / Watt
18 amp / 226 watt

Recommended fuel
87 octane / up to 10% ethanol

Recommended oil
Mercury FourStroke Oil 10W-30

Engine protection operator warning system
SmartCraft Engine Guardian

Compatible with SmartCraft digital technology
Yes

Starting
Electric (turn-key)

Steering
Big Tiller

Remote
Tiller Kit

Shaft length
15" / 381 mm

Dry weight *Lightest model available
267 lbs / 121 kg

CARB star rating
3

Bore and stroke
2.56 x 2.95" / 65 x 75 mm

Ignition
ECM 07 Digital Inductive

Fuel system
Electronic Fuel Injection (EFI)

Gearcase options
Jet Drive

Trim system
Power Trim

Color
Phantom Black

STANDARD FEATURES :

Power Trim & Tilt
Service Tool Kit & Parts
Stop Switch Lanyard
Owner's Manual
