The In-Line Four V MAX SHO four strokes have achieved the unthinkable—packing signature V MAX SHO hole shot and acceleration into streamlined designs. This powerful family now includes the all-new I-4 V MAX SHO 90, which packs the biggest punch of any 90-horse on the water. Overall, this series of 1.8- and 2.8-liter dynamos features a surprising tech package with 16 valves, single- or double-overhead cams and electronic fuel injection—for maximum efficiency and high performance. This makes the I-4 V MAX SHOs perfect for smaller bass, flats and bay boats and other performance hulls. With the option of a 25-inch shaft for all of our I-4 V MAX SHO outboards, anglers prowling big waters on multi-species, bay and flats boats have a competitive edge that runs deeper than ever.

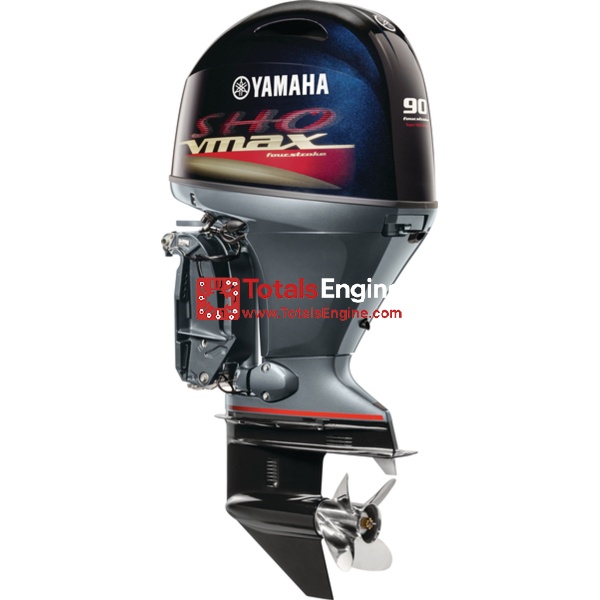

The All-New VF90 In-Line Four V MAX SHO. A single-overhead-camshaft design with four valves per cylinder and 1.8-liter displacement make the I-4 V MAX SHO 90 a class leader in torque, top speed and efficiency. Even still, it's one of the quietest 90-horsepower outboards on the water. That makes for some pretty stealthy fishing.
Available for mechanical remote or tiller control.

KEY FEATURES

Extra Space: A four stroke in-line design means there's no need for an external oil tank. That means less weight and more storage room in the boat for tackle and gear.

Ample Charging Power: With 35 amps for the VF90, the alternators produce enough power for battery charging and a range of on-board electronics.

Easy Rigging: I-4 V MAX SHO outboards feature mechanical controls for easy, convenient rigging with most bass, bay and flats boats, and are compatible with analog, 6Y5 digital or Command Link gauges.

SPECS :

Engine Type    Inline 4
Displacement    1.8L
Bore x Stroke    81 x 88.9mm (3.19 x 3.5in)
Prop Shaft Horsepower    90hp @ 5500 RPM
Full Throttle RPM Range    5000 - 6000 RPM
Alternator Output at W.O.T.    35 amp
Compression Ratio    10.0:1
Fuel Induction System    EFI
Weight †    20" 353 lbs, 25" 362 lbs
Recommended Fuel    Regular Unleaded (Minimum Pump Octane 87)
Recommended Engine Oil    Yamalube® 4M (See owner's manual)
Recommended Fuel Filtration    Yamaha 10-Micron Fuel/Water Separating Filter (external)
C.A.R.B. Rating    3-Star
Exhaust    Through Propeller
Intake    16
Ignition    TCI Microcomputer
Spark Plug    LFR5A-11
Alternator Output    35 amp
Starting System    Electric w/ PTT
Lubrication    Wet Sump
Engine Oil Capacity    3.2L / 3.0L (with / without filter)
Recommended Cooling    Water, Thermostatic Control
Ethanol Blend Limit    10% Maximum
Gear Ratio    (28/12) 2.33
Gear Shift    F-N-R
Shaft Length    L = 20" X = 25"
Degree of Tilt    -4° through 66°
Degree of Trim    -4° through 16°
Dry Weight    20" shaft / (160 kg) 353 lbs, 25" shaft / (164 kg) 362 lbs
Mounting Centers    26"
Steering Angle (maximum)    35° from center, either direction
Warranty    Limited Pleasure Three Years, Government Three Years, Commercial One Year

STANDARD FEATURES :

Power Trim & Tilt
Owner's Manual
Prop included
