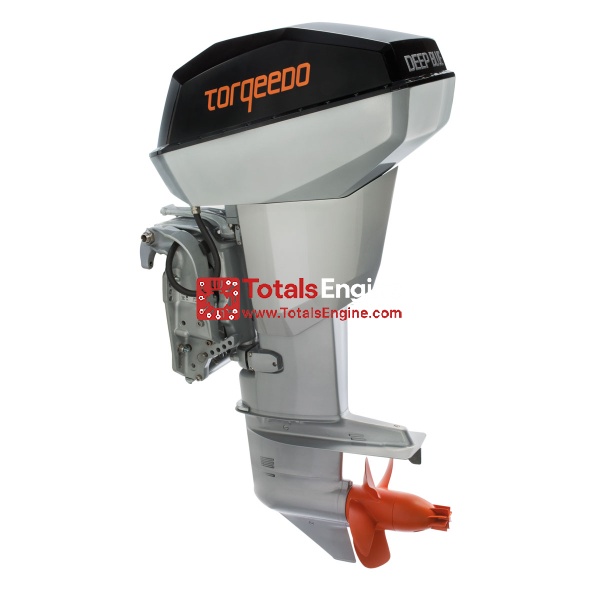

Buy Now Torqeedo Deep Blue 25 RL 40 HP Electric Outboard Motor

New Torqeedo Deep Blue 25 RL 40 HP Electric Outboard

RRP:

~~$10,290.00~~

Your Price:

$9,590.00 (You save $700.00)

Brand:

Torqeedo

Weight:

319.70 LBS

Availability:

In Stock

Shipping:

Calculated at checkout

Feature:

Electric outboard - part of a complete system with modular design for leisure boats and commercial use
25 kW - 40 hp equivalent
A synthesis of performance and a perfectly integrated overall system with a ground-breaking safety concept that sets Deep Blue apart from all other electric drive systems on the market
All the components of the system are perfectly engineered to match each other and are completely watertight
We provide up to 9-year warranty on the Deep Blue's battery capacity with private use
Electric boat propulsion is not only powerful and safe, it is also a genuine commercial alternative for heavy users
Special tariff from Pantaenius Yacht Insurance with improved insurance protection and lower premiums compared with the normal tariff for boats with other high-voltage drives
Transparent maintenance overhead - an electric drive system requires far less maintenance than comparable drive systems using fossil fuel
Shaft length: 51 cm (short shaft) / 63.5 cm (long shaft)

Deep Blue System	Deep Blue 25 RL / RXL
Input power continuous (peak)	27.5 kW
Mech. Output power at shaft continuous (peak)	25 kW
Nominal voltage	350 V
Min. voltage for full performance	330 V
Contiuous torque / max. torque	129 Nm / -
Max. shaft rpm	1830 1/min
Maximum efficiency el. input to mech. output	89%
Comparable petrol outboards (shaft power)	40 HP
Maximum overall efficiency	54 %
Motor weight including electronics and cabling	L: 139 kg XL: 146 kg
Dimension L/W/H	868 x 394 x 1,535 mm
Shaft length	L: 20” / 51 cm XL: 25“ / 63.5 cm
Standard propeller	Standard high speed propeller: Diameter 12,5” /Pitch 15,8” / 5 Blade
Propeller Mounting	Gearcase: 4 ¼ “ Shaft: 13 teeth
Max. allowed ambient temperature	45°C
Max. drive temperature controller / motor	90°C / 130°C
Cooling	Direct water cooling
Max. inlet temperature	35°C
Protection Category	IP 67
Conformity	IEC 60034-1 IEC 60349-2 IEC 60146-1-1
Tilting and trim device	Electric tilt and trim
Scope of supply	Outboard motor Cabling Standard high speed propeller Electric tilt and trim
