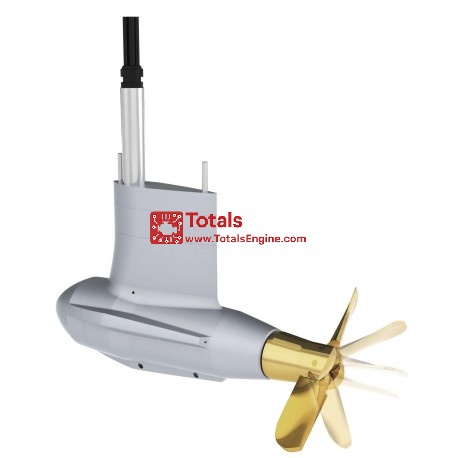

The motor unit, proven successful in thousands of outboards, is just one component of an integrated system that offers superior performance and convenience. It is complemented by Torqeedo’s high-capacity lithium batteries and works with a new electronic throttle and state-of-the-art user interface. The system can be charged from shore, solar, and generator power. It can recharge its own batteries through hydro-generation while under sail.

Key Features

• Maximum efficiency for greater performance and range
• Note: Motor requires a dedicated battery bank which must be separate from the house load
• Includes GPS onboard computer and display: Real-time display of speed and input power, and also the exact battery status and remaining range when used in combination with the Power 26-104 lithium battery
• Connection to TorqTrac premium onboard computer on your smartphone
• Stable pylon made from marine grade anodized aluminum
• Extra robust design protects against damage from debris and is wear-resistant and maintenance free
• Can be used as hydro-generator to create power
• High level of corrosion protection; saltwater-capable
• Two-year limited warranty

Specifications

• Input Power: 10,000W
• Voltage: 48V
• Output Power: 5,600W (20hp equivalent propulsive power; 25hp equivalent thrust)
• Static Thrust: 315lb.
• Remote Control: Yes (remote throttle, fixed direction)
• Battery Type: External (sold separately)
• Max. Propeller Speed: 1,400rpm
• Weight: 73.7lb.

What's Included

• Motor complete with pylon, mounting flange, and compensator block
• Remote throttle lever with integrated display and connection cable
• Propeller with attachment set (5-part)
• Electronics box
• GPS receiver
• 5 m data cable
• Magnetic chip for Emergency Off Cable set with main switch and fuse, plus six cable bridges
• Installation material for electronics box
• Operating manual including warranty form
• Mounting kit
• Service folder
